DQL/DQLE2

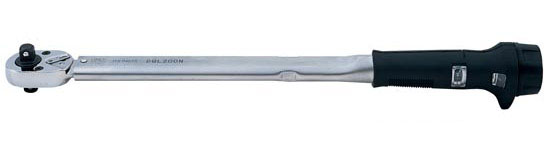

Dual Drive Adjustable Torque Wrench
|
| |
|
| |
|
- Adjustable Click Type Torque Wrench with Two Square Drives
- Dual square drives allow for clockwise and counterclockwise tightening.
- Ideal for Tightening Large Vehicle Tires
| |
|
| |
|
 |
| DQL200N4 |
 |
| DQLE750N2 |
|
|
| | |
| | |
| |
| Select proper model according to unit of measure as following color code : | | |
|
|
Accuracy ±3%
| |
|
| Model | Torque Range | Dimensions [mm] | Square Drive | Weight approx. | Grip Style | Optional |
| S.I. | Metric | American | Min.-Max. | Graduation |
| S.I. | Metric | American | S.I. | Metric | American | L | L' | b | R | h | m | n | d | D | l0 | l1 | s | mm | in. | kg | Carrying Case |
| DQL200N4 | 1800DQL4 | 1800DQL-A | N.m
40-200 | kgf.cm
400-1800 | ft.lbs
30-150 | N.m
2 | kgf.cm
20 | ft.lbs
2 | 400 | 490 | 15.4 | 20 | 53.8 | 35 | 15 | 27.2 | 51.5 | N/A | N/A | N/A | 12.7 | 1/2 | 1.4 | Resin | #843 and #846 |
| DQL280N | 2800DQL2 | 2800DQL-A | 40-280 | kgf.m
4-28 | 30-200 | kgf.m
0.2 | 2 | 600 | 695 | 20.5 | 22.5 | 63.7 | 18 | 19.0 | 3/4 | 1.8 | #847 |
| DQLE550N2 | 5500DQLE2 | DQLE400F-6A | 100-550 | 10-55 | 100-400 | 5 | 0.5 | 5 | 1100 | 1195 | 32 | 65.5 | 44 | 34 | 30 | 832 | 60 | 8 | 5.1 | Knurled Metal | N/A |
| DQLE750N2 | 7500DQLE2 | DQLE600F-6A | 100-750 | 10-75 | 150-600 | 1250 | 1370 | 21.5 | 35 | 70.5 | 52.2 | 20 | 40 | 885 | 81 | 7.1 |
| DQLE1000N2 | 10000DQLE2 | DQLE700F-8A | 100-1000 | 10-100 | 200-700 | 1400 | 1540 | 26.5 | 37 | 81.5 | 58 | 23 | 45 | 34 | 937 | 100 | 25.4 | 1 | 9.5 |
| |
|  | |
|
- For DQLE550N2 ~ 1000N2 and equivlants in other units, adjusting tool is integrated in the handle.
- Not for inspection purpose.
- DQLE models are supplied with extension bar.
| |
| Optional Accessories: | |
|   | |
| Carrying Cases: #846/#847 | | Carrying Case #842 / #843 | | | |
| | | | | | |
|
Dimensions
| | | | | |
| DQL | | | | | |
|  | |
| DQLE | |
|
