Cosel Electrical Noise Filter and EMI Filter

Electrical Noise Filter, EMI Filter

Brand: Cosel EAC Series

Overview

Single-phase 250VAC　3-30A
General-purpose　Small-size
150ｋHz-1MHz
1-stage filter

Website: www.improtechonline.com  https://en.cosel.co.jp/

Contact: ken.sim@improtechonline.com



Mr.Ken Sim, Mobile: +6012-4661514

TECH IMPRO AUTOMATION SOLUTION SDN. BHD.

Address: 7263 (1st Floor), Lorong Chempa,

12200 Butterworth,

Penang, Malaysia.

 H/P: +6012-4661514 CALL/SMS/ WATSAPP

Email: ken.sim@improtechonline.com

Cosel Electrical Noise Filter and EMI Filter

Noise Filter

EMI Filter

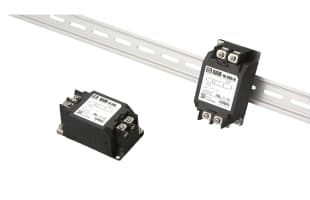

EAC Series

Overview

Single-phase 250VAC　3-30A
General-purpose　Small-size
150ｋHz-1MHz
1-stage filter

EAM Series

Overview

Single-phase 250VAC　3-30A
Low leakage current type　Small-size
150ｋHz-1MHz
1-stage filter

EAP Series

Overview

Single-phase 250VAC　3-30A
High-voltage pulses high-attenuation　Small-size
1-stage filter

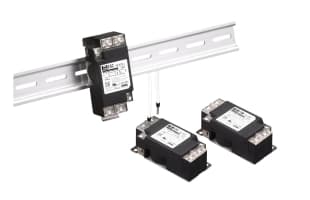

ESC Series

Overview

Single-phase 250VAC　3-16A
General-purpose　Small-size
Screwless terminal type
150ｋHz-1MHz
1-stage filter

ESM Series

Overview

Single-phase 250VAC　3-16A
Low leakage current type　Small-size
Screwless terminal type
150ｋHz-1MHz
1-stage filter

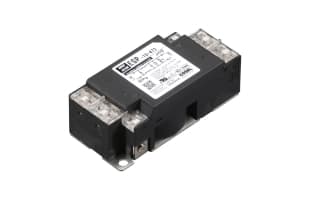

ESP Series

Overview

Single-phase 250VAC　3-16A
High-voltage pulses high-attenuation　Small-size
Screwless terminal type　
1-stage filter

NAC Series

Overview

Single-phase 250VAC　4-30A
General-purpose
High-attenuation from 150kHz to 1MHz
1-stage filter

NAM Series

Overview

Single-phase 250VAC　4-30A
Low leakage current type
High-attenuation from 150kHz to 1MHz
1-stage filter

NAP Series

Overview

Single-phase 250VAC　4-30A
High-voltage pulses high-attenuation
1-stage filter

NAH Series

Overview

Single-phase 250VAC　6-30A　
Ultra high-attenuation from 10kHz to 1MHz
1-stage filter

NBC Series

Overview

Single-phase 250VAC　6-30A
High-attenuation from 150kHz to 1MHz　
2-stage filter

NBM Series

Overview

Single-phase 250VAC　6-30A
Low leakage current type
High-attenuation from 150kHz to 1MHz
2-stage filter

Email: ken.sim@improtechonline.com



Mr.Ken Sim, Mobile: +6012-4661514

TECH IMPRO AUTOMATION SOLUTION SDN. BHD.

Address: 7263 (1st Floor), Lorong Chempa,

12200 Butterworth,

Penang, Malaysia.

 H/P: +6012-4661514 CALL/SMS/ WATSAPP

Email: ken.sim@improtechonline.com

COSEL Electrical Noise Filter, EMI.EMC Filter

Cosel

Noise Filter, EMI.EMC Filter

Single-phase 250VAC, 16A
High-voltage pulses high-attenuation Small-size
1-stage filter





Product Line-up

Product Name	Leakage Current*	Line to ground capacitor (nominal value)
EAP-10-000	5μA/10μA max	Not Provided
EAP-10-101	12.5μA/25μA max	100pF
EAP-10-221	25μA/50μA max	220pF
EAP-10-331	37.5μA/75μA max	330pF
EAP-10-471	50μA/100μA max	470pF
EAP-10-681	75.5μA/150μA max	680pF
EAP-10-102	0.13mA/0.25mA max	1,000pF
EAP-10-222	0.25mA/0.5mA max	2,200pF
EAP-10-332	0.38mA/0.75mA max	3,300pF
EAP-10-472	0.5mA/1.0mA max	4,700

Specification

Contents		Specifications
Rated Voltage		AC 1 φ 250V/DC250V
Rated Current		10A
Operating Temperature		-40 to +85℃ (Refer to Derating Curve)
Agency Approvals		UL1283, CSA C22.2 No.8 (C-UL) , DIN EN60939 VDE0565 Teil3-1, ENEC (At only AC input)
Others	Dimensions (WxHxD)	39x30x85 mm [1.54x1.18x3.35 inches] (Option: -D refer to external view)
	Weight	170g max
Warranty Period		5-year

• * For further information and how to use, please see in Cosel product catalog.

• Catalog (Including Dimensions)
• Instruction Manuals (Including attenuation characteristics)

Circuit Diagram

Derating Curve

Documents Download

Technical Data		Performance Data Safety Approvals Reliability MTBF
CAD Data	DXF	Standard Model
3D CAD Data	STEP	Standard Model
	IGES	Standard Model

• * For another documents aren't listed, please feel free to contact to a Cosel representative.

Similar Model (Rated Voltage and Current)

Features		Model Name	Released	Catalog Instruction Manuals
	Small-size, Screwless terminal type, High-voltage pulses high-attenuation, 1-stage filter	ESP-10	2010	Catalog Instruction Manuals
	High-voltage pulses high-attenuation, 1-stage filter	NAP-10	2005	Catalog Instruction Manuals
